Virtual marking of crane suspended loads
Safety of Crane Technology

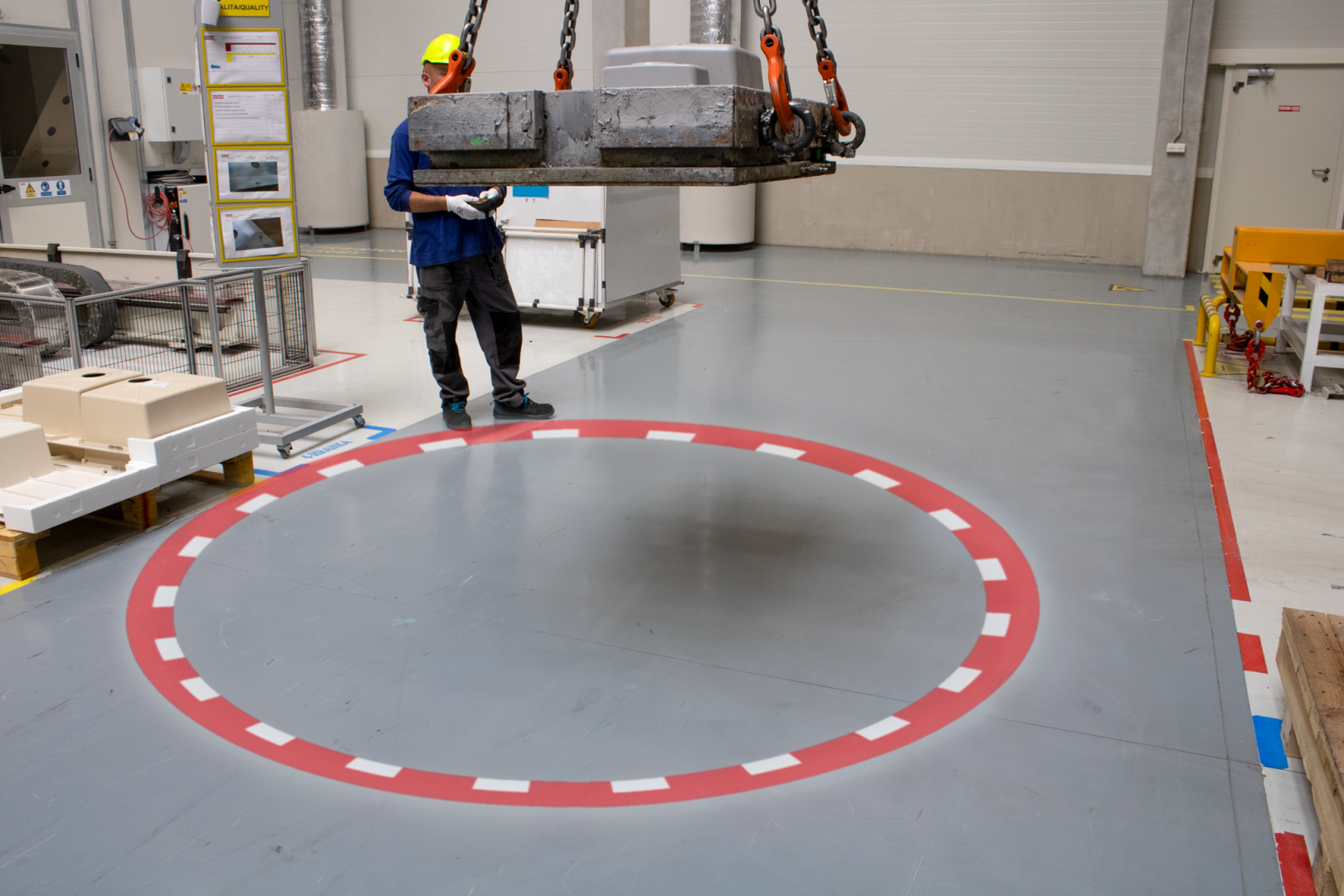

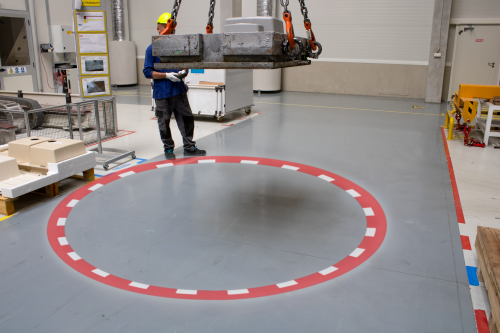

CRANE Series LED projectors have been designed to project hazardous zones around oversized loads to withstand even the hardest industrial conditions. Light projection around crane loads reduces the risk of workplace accidents caused by inattention and helps operators navigate the area easier and faster.
LED projector with GOBO glass

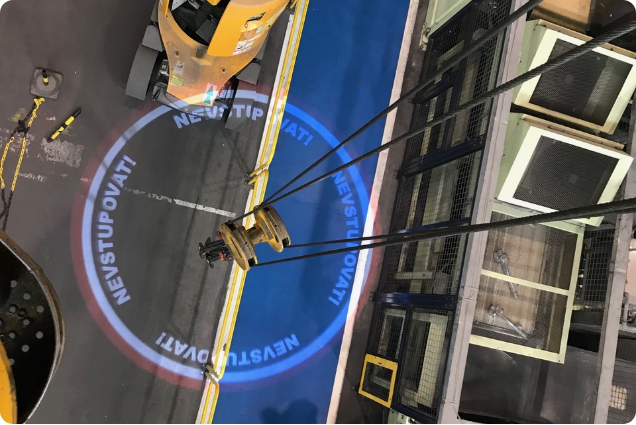

A solution adapted to project the danger zones of loads carried by overhead cranes from a height of 5 metres or more.
- Projection of optional marking designs – circular/rectangular zones, dashed lines and other symbols in combination with text.
- Industrial design of the projector body with moisture and dust resistant IP 65 protection.
- Optional pulsing and flashing function, 24/7 illumination standard.
- Switching on the projection by putting the crane into operation or moving the crane.

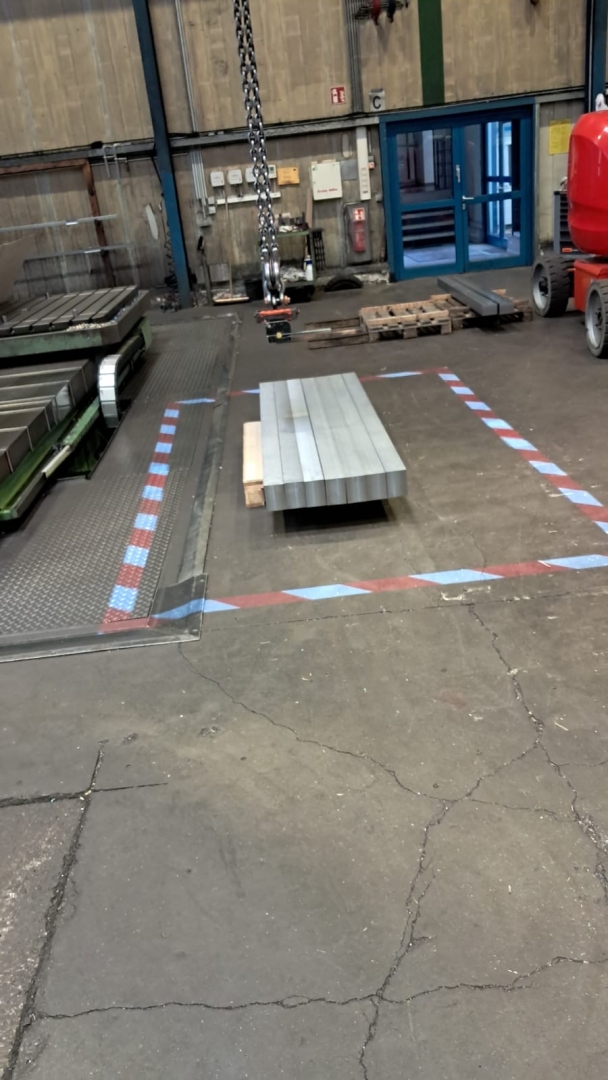

More sophisticated way of marking loads
The new LINE Series projectors feature a specially modified optical system to maximize the potential of lumen intensity and line length.
- Line projection in 5 available colours (red, blue, green, yellow, white).
- Moisture and dust resistant industrial design with IP 60 protection.
- Line length selectable.

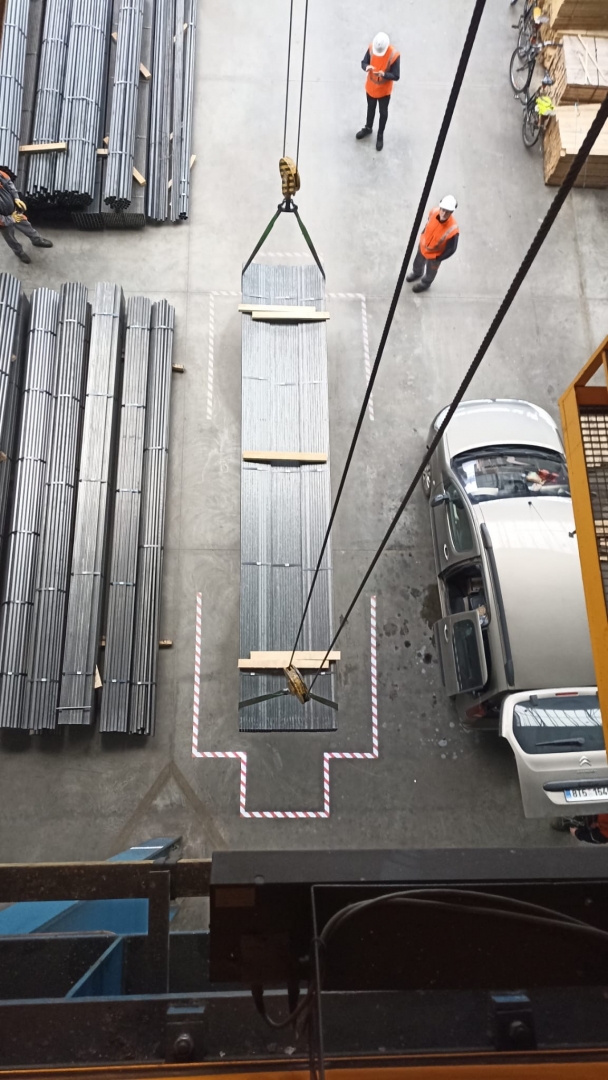

Revolution in the marking of oversize loads
Easy application for virtual marking of heavy loads carried by crane:
- Attaching the projector to the crane.
- Adjusting the projection angle to the dimensions of the load.
- Curving the length of the lines with the projector shades to achieve the desired shape of the final projection.

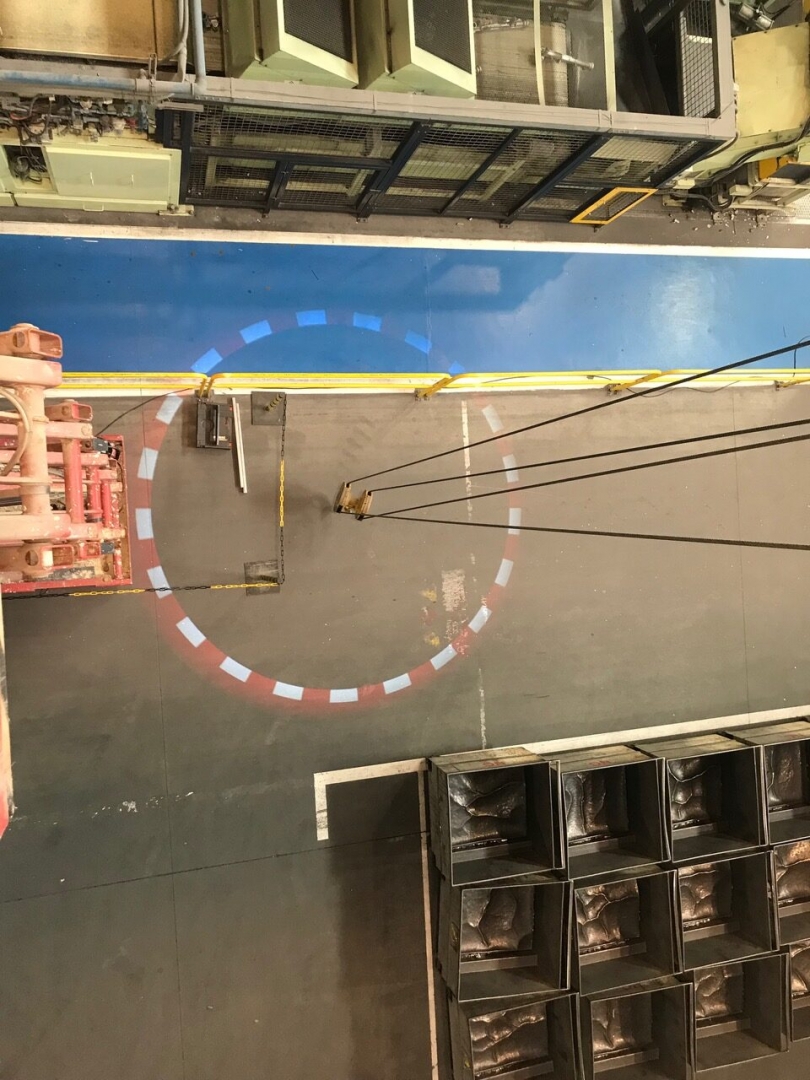

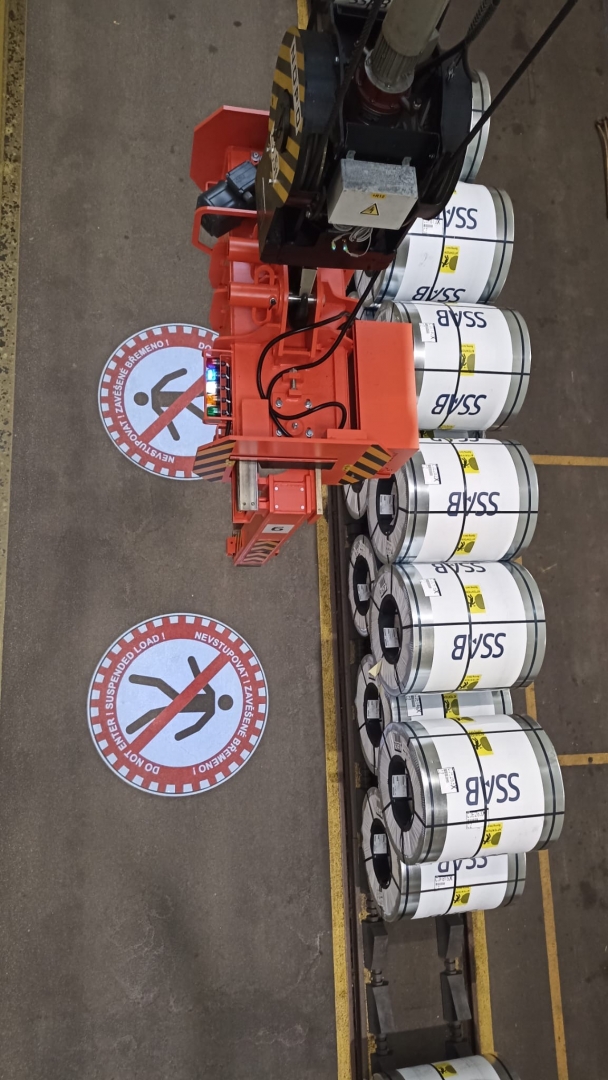

Hook and load position marking
LED light projection around the crane equipment is used to visualize the position of the crane hook/loaded load in real time. The projectors thus reduce the risk of workplace accidents for operators and employees working near suspended loads, while helping crane operators to handle material more safely and easily.
Revolution in the marking of moving loads.
Up to 90 % of accidents related to handling around crane equipment are caused by human error. The industrial LED projectors are suitable for marking applications on indoor overhead and gantry cranes and on all types of transport systems with their own PLC system.
