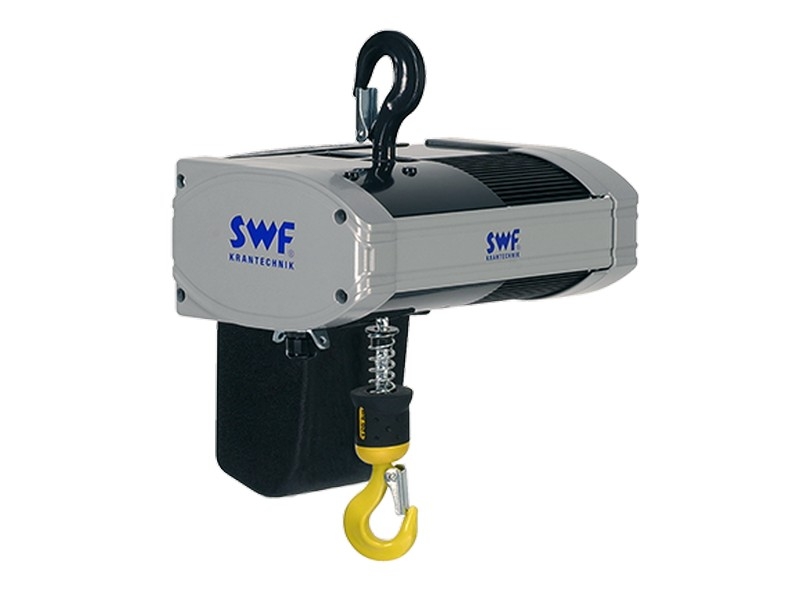

Electric chain hoist SWF krantechnik CHAINster

Electric chain hoist SWF krantechnik CHAINster<br />Electric chain hoist SWF krantechnik CHAINster

SWF Krantechnik chain hoists are designed for loads up to 5 tons. They offer high durability and flexibility in handling different types of loads.

As standard, CHAINster hoists are equipped with a two-speed lift (main lift and micro lift). The hoist travel is standard with a smooth travel by means of a frequency converter or two speed. As an option, the hoists can be equipped with stepless stroke control by means of a frequency converter or by contactless switches for precise movement.

Technical parameters of SWF Krantechnik - CHAINster chain hoists

Load capacity: max. 5,000 kg
Lift height: up to 35,000 mm
Travel speed: up to 20 m / min
Lifting speed: up to 20 m / min
Voltage: 380/400/415 V 50 Hz
Standard protection: IP 55
Contactor control: 48 V
Lift switch: 2-stage end
Overload protection: Mechanical and thermal
Operating temperature: -10C to 45C
