Adjustable H-traverses

Adjustable H-traverses

H-beams are used for manipulation with multi-stage suspension. Are used in cases where it is necessary to ensure that the chain, on which the load is hanged, leads to the suspension on the load vertically downwards.

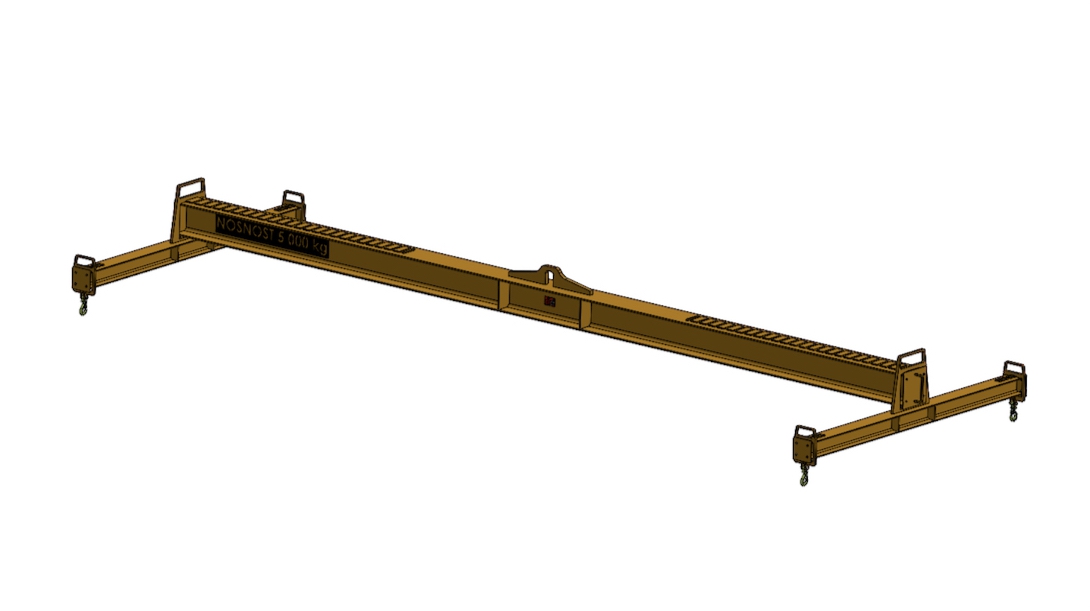

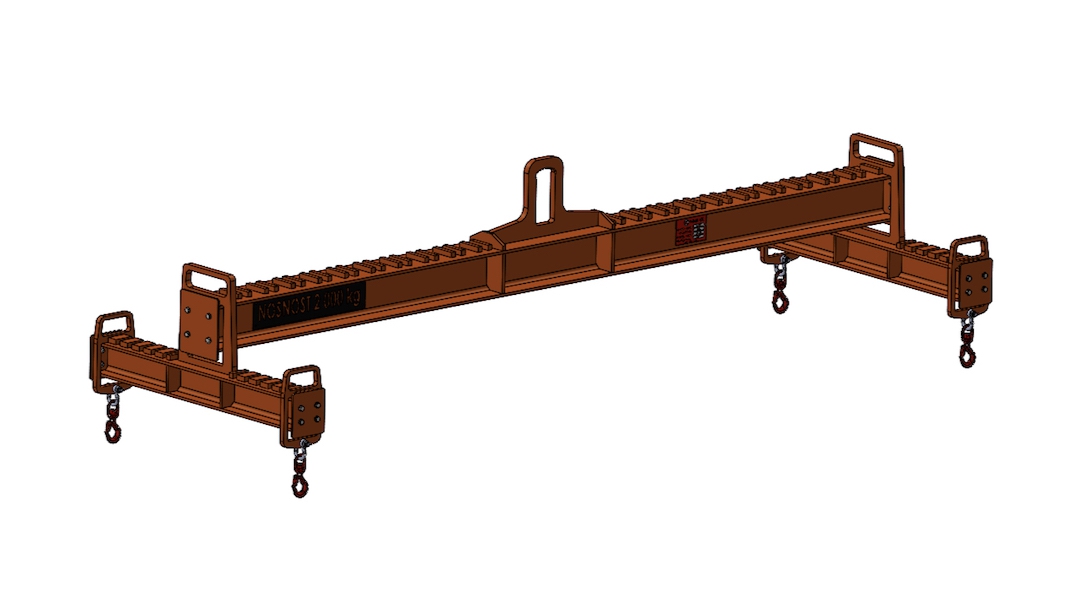

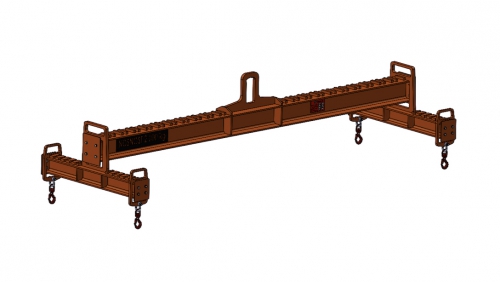

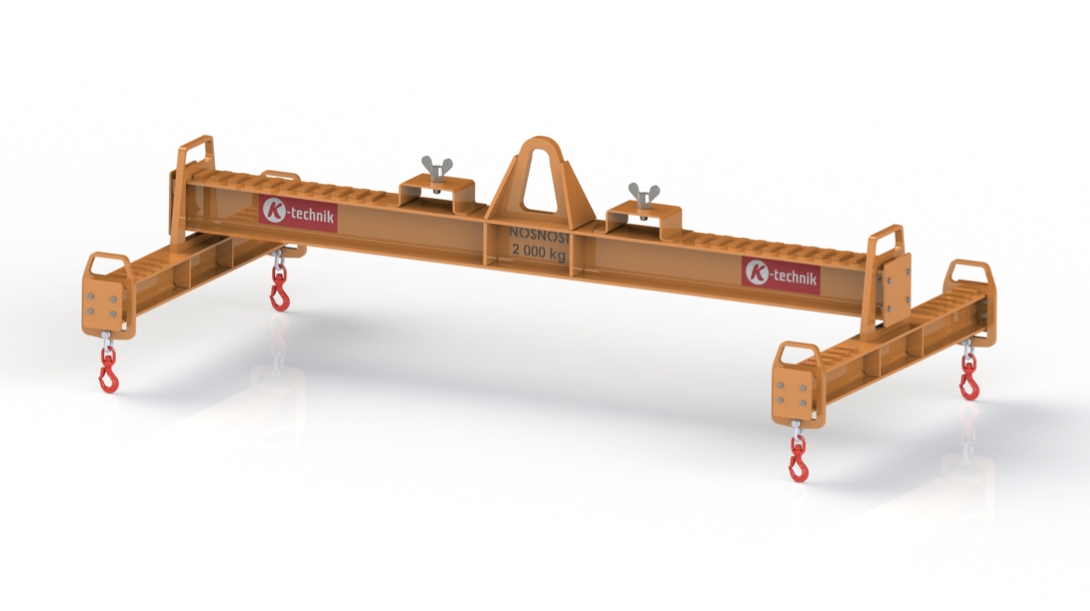

The crane lifting beam consists of four bacis elements: a beam or central tube where one or more top suspension elements and two beams are welded at the ends, where four or more lower suspension elements are placed. Usually the “H” beams are welded to the central structure.



The construction of the uuper hinge corresponds to the hook of the crane on which the beam will be suspended. The upper hinge cal also je adapted for hanging on several types of the hooks.

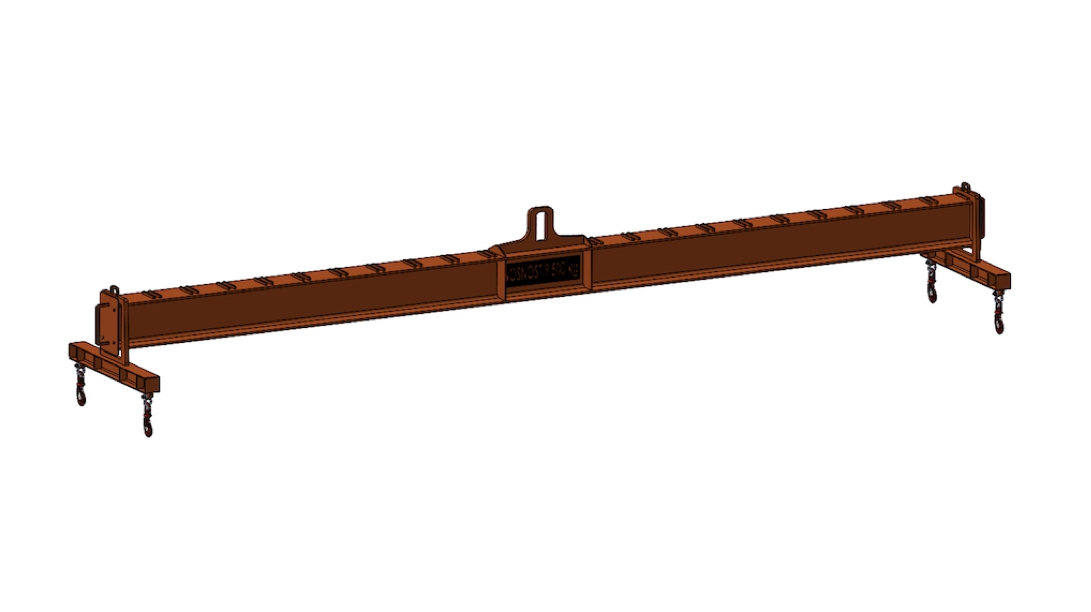

In the case of longer beams, it is recomended to increame the stability of the beam suspension on a double-stranded chain bonder.

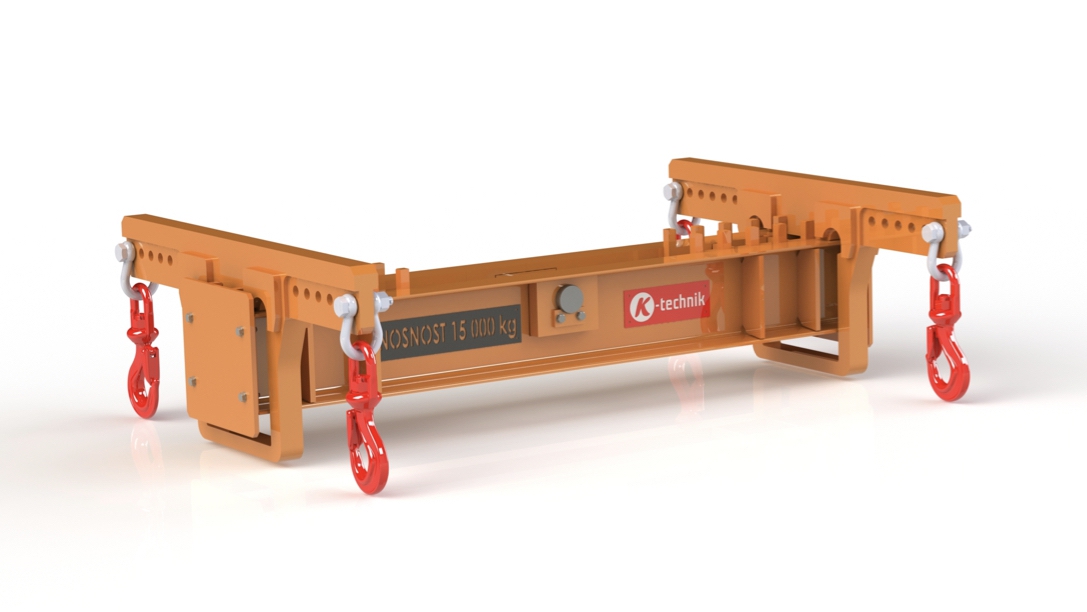

Adjustable transverse beams are equipped with a suspension eye for larger crossbeams so that they can be moved by crane.

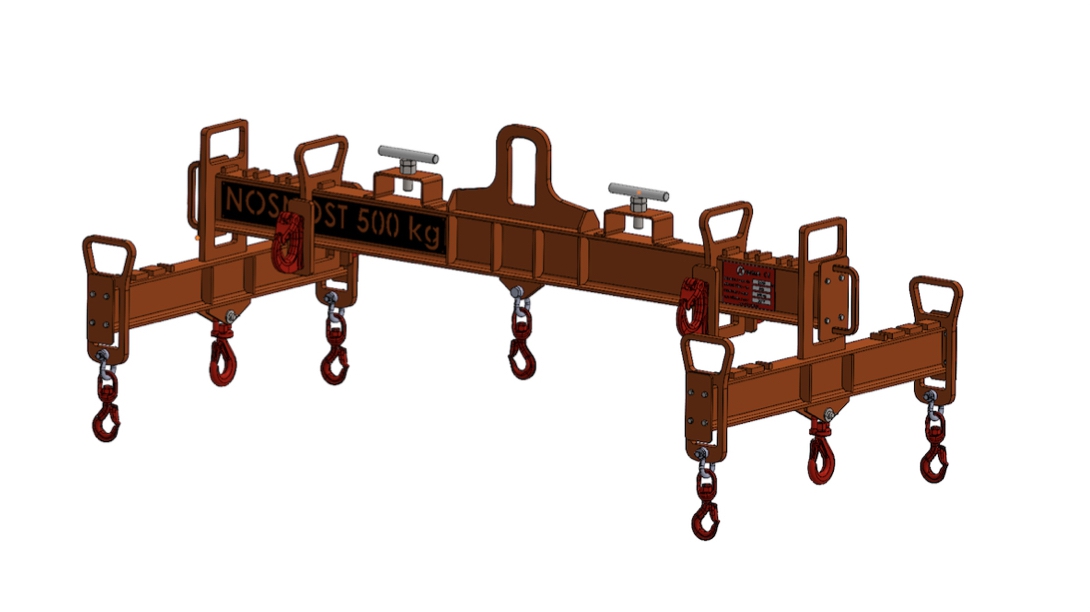

The lower hinges can also take several forms: eg. an adjustable hinge with a pivoting hook, an adjustable hinge with a swivel hook, an adjustable hinge with side hooks, etc.

The adjustable hinges are manually moved along the transverse beams to predetermined positions.

All lifting beams are manufactured according to customer requirements. Can be supplied with a stand.
